Pics of back insulation placement?

jpowell

Member

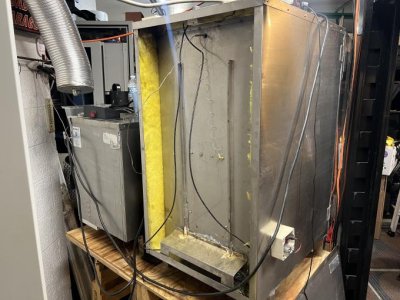

So I took apart my 4 over a year ago trying to troubleshoot why it wasn’t working with the auber controller I bought. I thought I took pics of the insulation placement when I removed them but can’t locate them.

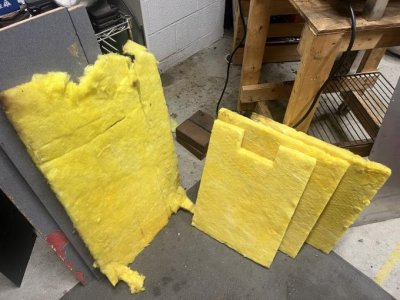

I have 4 insulation chunks. They don’t seem to fit like I’d think they should so hoping someone can shed some light. Particularly if anything goes between the smoker and the analog temp probe.


Attachments

  • IMG_7181.jpeg
    62.3 KB · Views: 112
  • IMG_7182.jpeg
    58.9 KB · Views: 110
  • IMG_7183.jpeg
    62.1 KB · Views: 109
Figures that I’d post here and then almost immediately find the pic I was looking for lol. Oh well. Now to email auber support and ask how much to fix my controller that only outputs 42V at 100% output.
