Electronics Problem

[Ken]

I had major issues last year.  After a lot work with the wiring and connectors, I thought the problems were in the past.  I even tried a new controller and that was not the problem.  Now my problems have come back strong.  All the connections to the controllers are solid. As you can see in the attached photo, it corrected itself after a long cook.  That happened again the next day in the middle of a short test cook.  Before I take the back off again, I thought someone might have an idea.



[old sarge]

I will forward to Steve and see if he can assist.



[Ken]

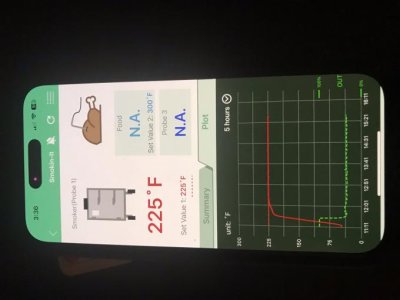

I guess I've made some progress.  I took the controller and the back off so every connection could be checked.  There was nothing that stood out, but I checked everything. The attached image shows today's results.  While the power supply was a bit shaky, the temperature stayed fairly stable.  Maybe I have a wire with a bad spot.  I don't think I fixed it, but I can now use the smoker.  Again, any suggestions would be appreciated.



[old sarge]

Hoping it holds!



[Ken]

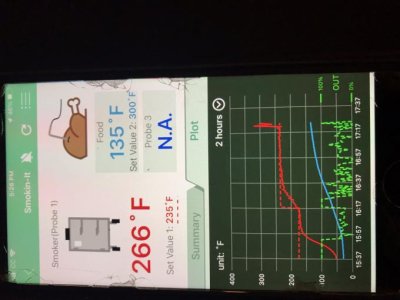

I think I finally solved the problem. At least it's as good as it's going to get.  This December things went south again.  After that I replaced every wire in the system that had common connections.  I used 18 gage insulated solid copper wire.  The images show the before and after.  It's been good for some time now.



[old sarge]

Sweet!
