Stand for 3D - Modified Harbor Freight Service Cart

Smokin Jon

New member
OK.  So I got tired of having to get on my knees to use my 3D.  I didn't want to break the bank purchasing a cart.  Also, I determined it's not worth my time to build one from scratch.  Therefore, I decided to purchase a Harbor Freight 24" x 36" service cart and lower it by 4 inches.  I determined the height I wanted by using a hydraulic table cart.  The bottom of the top tray is 25.75" from the ground which is slightly higher than the 24" height of the Smokin-It SS carts.

Anyway.
No more grease drips on the patio.
No more bending over to load food or to clean the smoker afterwards.
It moves very easily.
It's a nice modification for a ~$60.00.

Smokin Jon


Attachments

  • Determining Height for 3D.JPG
    Determining Height for 3D.JPG
    55.9 KB · Views: 456

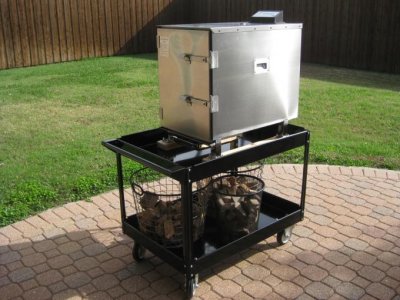

  • 26 in. Service Cart for 3D.JPG
    26 in. Service Cart for 3D.JPG
    64.3 KB · Views: 506
Very nice! Do you have it bolted to the cart somehow? I see wood blocks but not sure if you went through those or not.

Nicely done!

No.  It's not bolted to the cart.  It's heavy enough that it doesn't move.

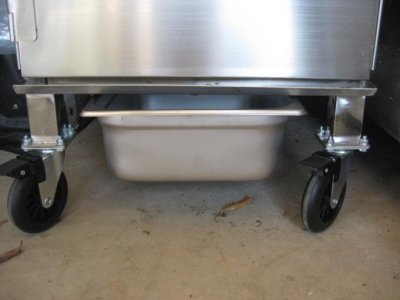

I bolted two 2x4 skids onto the feet of the smoker.  The smoker had to be raised 1.5" to accommodate a larger drain pan I purchased.

The smoker was raised on the hydraulic table and slid onto the cart.
Very easy solution for an aging back!


Attachments

  • IMG_2963.JPG
    31.1 KB · Views: 357
That looks really good. I hate having to get down on my old knees to load, unload, clean etc. I've been contemplating how I want to proceed to fix this issue. Does your setup seem like it is at all top heavy? Appreciate you posting and sharing with us.

The wheelbase of the cart is wider & longer than the smoker.  It is not unstable - even with the lower shelf empty.  That being said, I do not have a steep patio or driveway.

I'm 5' 9".  If I were 6 foot or taller I would probably leave the cart unmodified.
I'm very happy with this affordable cart.
