How tall is your cart?

[jpowell]

Got the itch to make a cart for my 3D, so used some 2x4's and made a prototype. It's too tall though (34") after looking at how high I'd have to lift meat to get it to the upper rack slots.  So, I'm wondering how tall your carts are?



[old sarge]

If my math is good, to the top of the controller, you are a couple inches proud of 5 feet. Maybe a height of 4 or 4 1/2 feet would be ideal for you?  Depends of course on your height and what is comfortable for you.



[jpowell]

My plan at the moment is to drop it a good 12" which I think would make wrestling a big floppy brisket off the rack easier and more natural.  I'm 5'11".



[old sarge]

On brisket and butts, I pull the entire rack out and place on a large jelly roll pan for transport into the house.



[LarryD]

Just found some specs for the 3/3D cart...

 25” deep
 24” wide with shelves folded
 42” wide with both shelves open
 22½” height overall
 Will raise smoker 21”

The specs for the 2/2D say it also raises the smoker 21" and that has worked really well for me.  I just measured and it's 45.5" to the top of my #2.



[jpowell]

Hadn't thought much about taking the whole rack out ... hmmmm.
Thanks for those dimensions LarryD.
I'm currently at 4'11" to the top of my 3D which puts the rack I normally use at 4'3"



[nvw-ssv]

Subscribed......please display pics of final product.  Dimensions would be appreciated, as well.  #3 purchase pending



[prudentsmoker]

I do not need mine to roll around, so I just put it on cinder blocks. I have four 8X8X16 with 2 each 8X8 on top of each and I don't use the casters of course. It is a real nice height for me.



[EFGM]

On brisket and butts, I pull the entire rack out and place on a large jelly roll pan for transport into the house.

There you go again David, sharing those outstanding ideas! Thanks



[jpowell]

Well, I never got around to lowering my cart and it's actually not been a problem at all

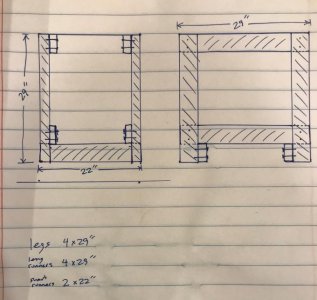

I forgot about this post until I stumbled on my design sketches tonight.

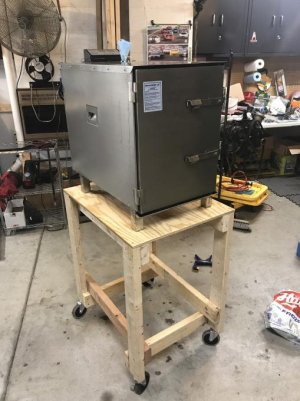

For anyone interested here's my uber simple design you can make quick and easy.
Just used regular 2x4's.
29" x 8 ... 4 of these for the legs and 4 for the horizonals
22" x 2 ... lower supports
I'd like to eventually cover the frame with some thin weatherproof material since it does sometimes see rain and it does look a little ghetto.



[jpowell]

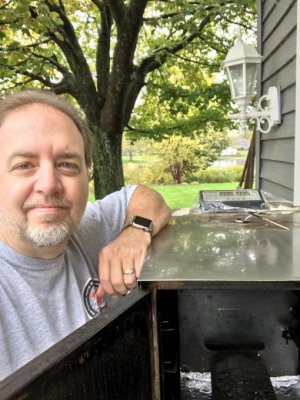

Opps. Meant to include a pic of me with it for height reference. I'm 5'11"
