A mazine wood pallet maze

[Randy]

Has any one tried one of these for cold smoking.I have a number 3 and love it.but for cold smokin I would like Something simple to do it with.I've cold smoked cheese and things but it kind of was a process.I think one of these might just do the trick.What you guys think.



[SuperDave]

Randy, feedback has kind of been 50/50.  The issue seems to be oxygen starvation in our well sealed smokers and the chips go out.



[NDKoze]

Check out this thread of mine from awhile back:
http://smokinitforums.com/index.php?topic=2639.0



[Randy]

Thanks NDKose that was a good read.Still not sure. I used ice last belly I did , it was good but almost had the flavor of putting out a camp fire smoke taste .might have to try drilling another hole.All you have to do is plug it with bolt and nut if you are smokin hot.



[pax238]

I use a slightly different setup in my #1. I'm using the expandable oval tube version http://www.amazenproducts.com/product_p/oet.htm. I have had to play around with it over 3 cold smoke salmon sessions to get it to work for me.

The first time, I had to re-light it very 30-45 minutes to overcome the oxygen starved seal of the #1. That was a PITA over the course of a 3 hour smoke.

The second time, I slid the drippings pan out to where the curve at the back of the pan was just behind the hole on the bottom of the smoker, and went out every 30 minutes and blew along the drippings pan to create some added airflow. Only had to re-light it every 60 minutes. Still a PITA, but not quite as much.

The third time, I slid the drippings tray out the same way and set up a very small fan in the front of the tray pointed toward the hole (the kind people put into A/V units for a little air circulation http://www.amazon.com/AC-Infinity-AXIAL-Muffin-Cooling/dp/B009OXTWZI?ie=UTF8&psc=1&redirect=true&ref_=oh_aui_search_detailpage). It worked like a charm. 3 hours of uninterrupted cold smoke, and the pellets were almost all consumed, unlike the other times when around 1/4-1/3 of them were not.

Hope that helps.



[NDKoze]

Do you have a pic of your setup Barry?



[pax238]

Do you have a pic of your setup Barry?

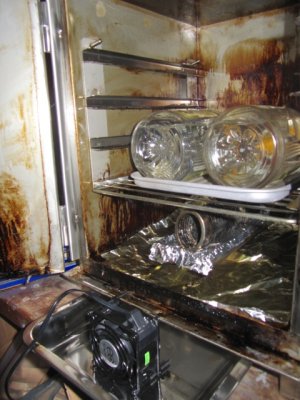

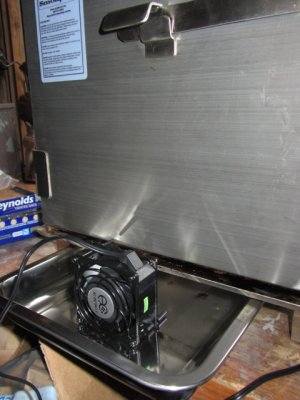

Here you go. Smokebox removed and rails/burner covered with foil. A-MAZE-N tube resting on the burner (it is very light, so no stress at all). 2 frozen bottles on an old toaster oven tray on the lowest shelf. Fan on the drip pan that is pulled out until the leading (curved) edge is just beyond the hole on the bottom of the #1 to funnel the air up toward the hole. All that we're missing is the salmon on the top 2 shelves (it was really good - smoked with Alder pellets).



[NDKoze]

I do not normally have a hard time getting my A-MAZE-N Tube Smokers to stay lit, but I do with my AMNPS. This might be a good option for me to try when using that. Thanks for the pics.
