3.5D WiFi cart

nvw-ssv

Member

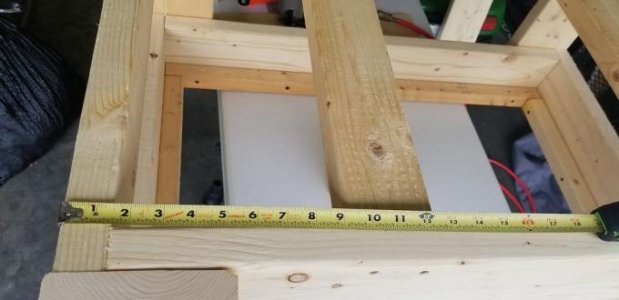

Just received and set up my 3.5D WiFi, thanks to the recent Smokin-It sale.  In order to make it a little more accessible, I made a cart.  Wood is 2x6 for the build and 1/2 inch sanded plywood.  Cart dimensions are 29"x 39", so it will roll through doorways, in case I need to take it from the garage to the back deck.

It is secured to the cart with 1.5" and 2.5" length 1/4 inch lag screws, so it is NOT coming off, and is NOT top-heavy in the least.  I'm loving it!  Also decided to attach a 15" depth drop down shelf on the front.  The bottom shelf is 23"x 36" ( 1/2 inch sanded plywood) and is painted and covered with linoleum scrap.

3.5D has performed flawlessly for two cooks during the first 7 days.


Attachments

  • 4.jpg
    26.1 KB · Views: 475
  • 2.jpg
    28.2 KB · Views: 479
  • 8.jpg
    27.7 KB · Views: 552
  • 9.jpg
    30.5 KB · Views: 543
  • 1.jpg
    20.4 KB · Views: 485
I also want a drop down self on the cart I built for my #1 can you post a picture of your shelf hold up device that is where I am lost how to get it all to work right.

Thanks Hank R

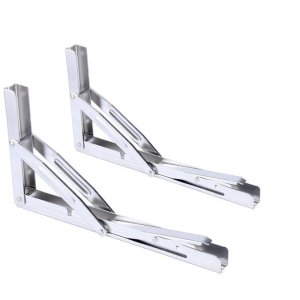

I used these:

https://www.amazon.com/gp/product/B01M2UYPHS/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

Maybe overkill, maybe not.  But I didn't want to have to buy twice. Advertised to hold 500+ lbs, but all I'm needing is about 50 lbs of strength, which I tested at.  Works perfectly.


Attachments

  • Smoker shelf brackets.jpg
    Smoker shelf brackets.jpg
    28.4 KB · Views: 446
